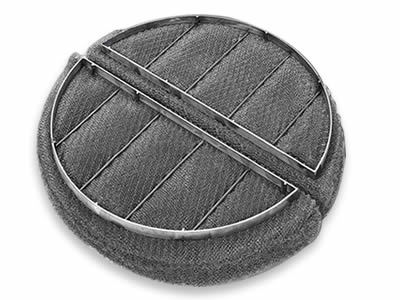

Copper Demister Pads are made up from knitted materials with interlocking asymmetrical loops of metal or plastic with typical wire diameters being 0.1 – 0.3mm.

By careful choice of wire diameter, we have produced knitted mesh demisters with extremely high free volumes (typically 98-99%) along with very high removal efficiencies and low pressure drop.

Along with wire diameter and mesh density, another important parameter in design and operation is the vapor velocity. This can be controlled by careful selection of the mesh area. Optimal area will depend on operating temperature, pressure and pressure drop. Under normal operating conditions, 99% + removal efficiency can be achieved with a pressure drop of less than 250 Pascals.




Type


Specification

Standard type


40-100 60-150 105-300 140-400 160-400 200-570

High-efficiency type


60-100 80-100 80-150 90-150 150-300 200-400 300-600

High-penetration type


20-100 30-150 70-400 100-600 170-560

Damping type


33-30 38-40 20-40 26-40 30-40 30-50 48-50 30-60 30-80 50-120



Packaging Details:

Plastic bag inside, carton or wooden case outside.



Delivery:

10-15 days after received your payments.



Benefits:

Ø Easy to install in all process equipment

Ø Most cost-effective solution when equipment sizes are set by other requirements

Ø High efficiency with low pressure drop

Ø Emergency delivery available

Applications:

Knockout Drums, Distillation Towers, Steam Drums, Absorbers, Sulphuric acid plants, Vacuum columns, Evaporators, Disitllation and rectification plants, Oil separators and etc
